RLH Industries 8806-1234-03 2 Wire Pots CO and similar items

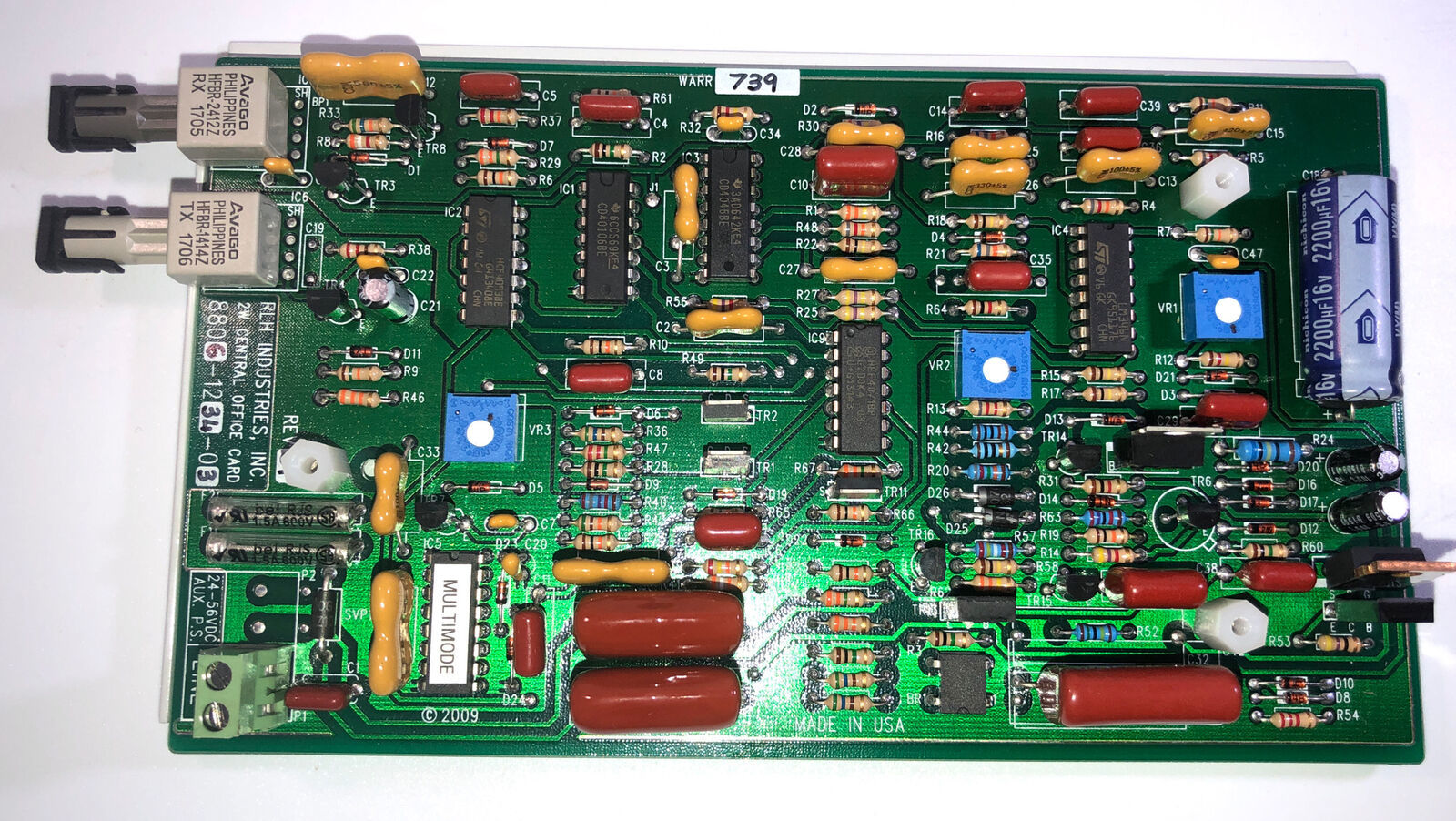

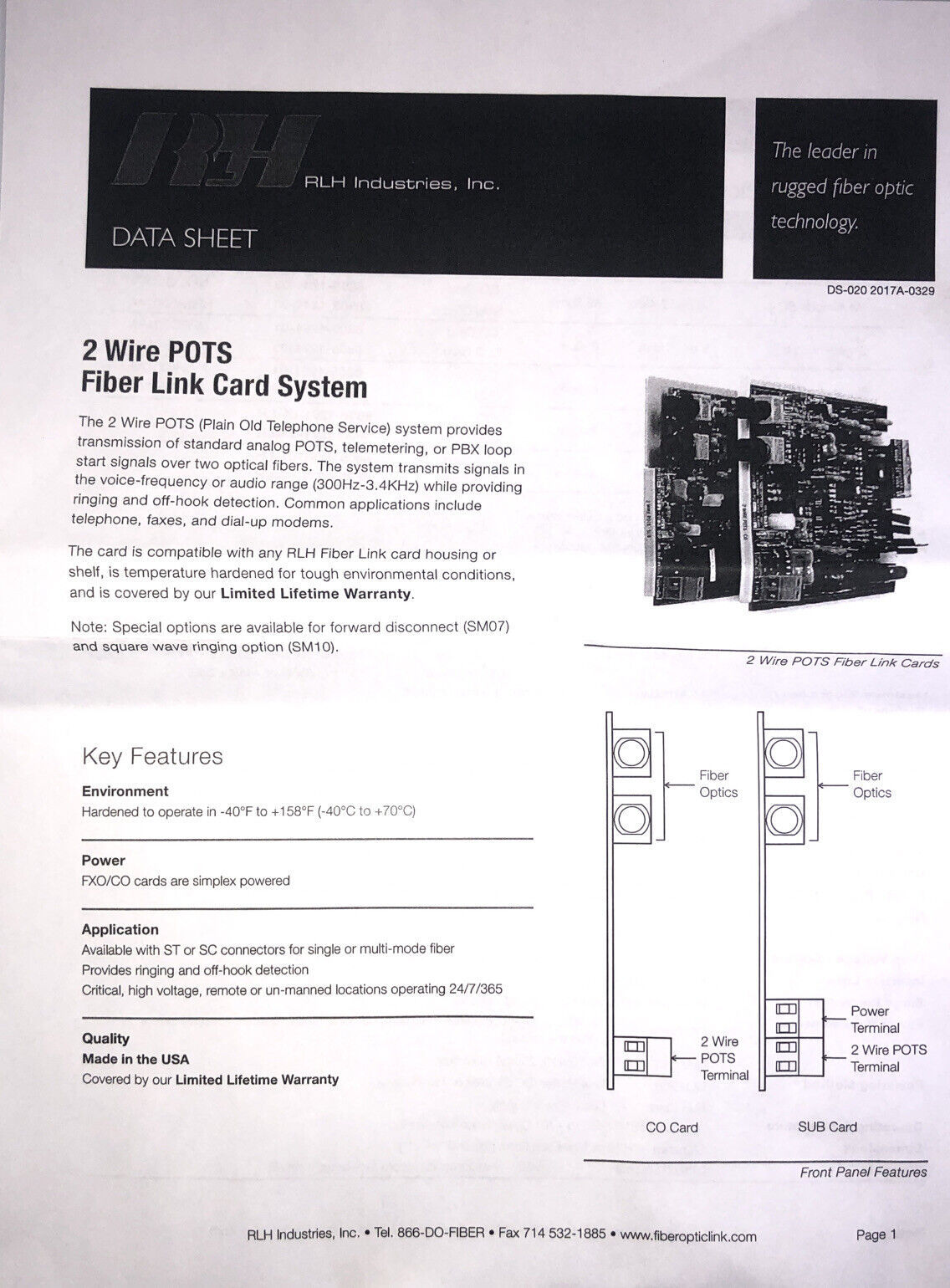

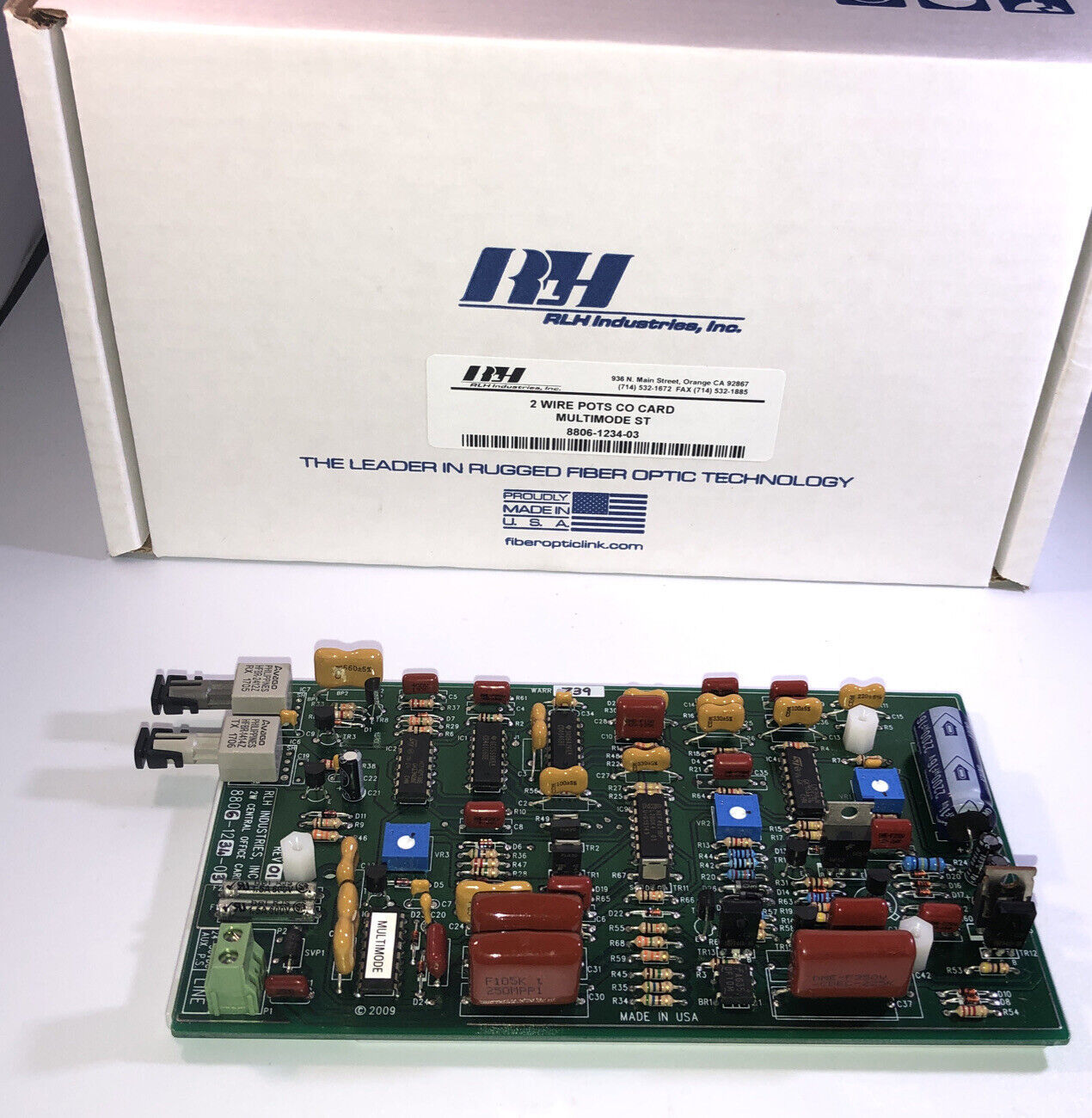

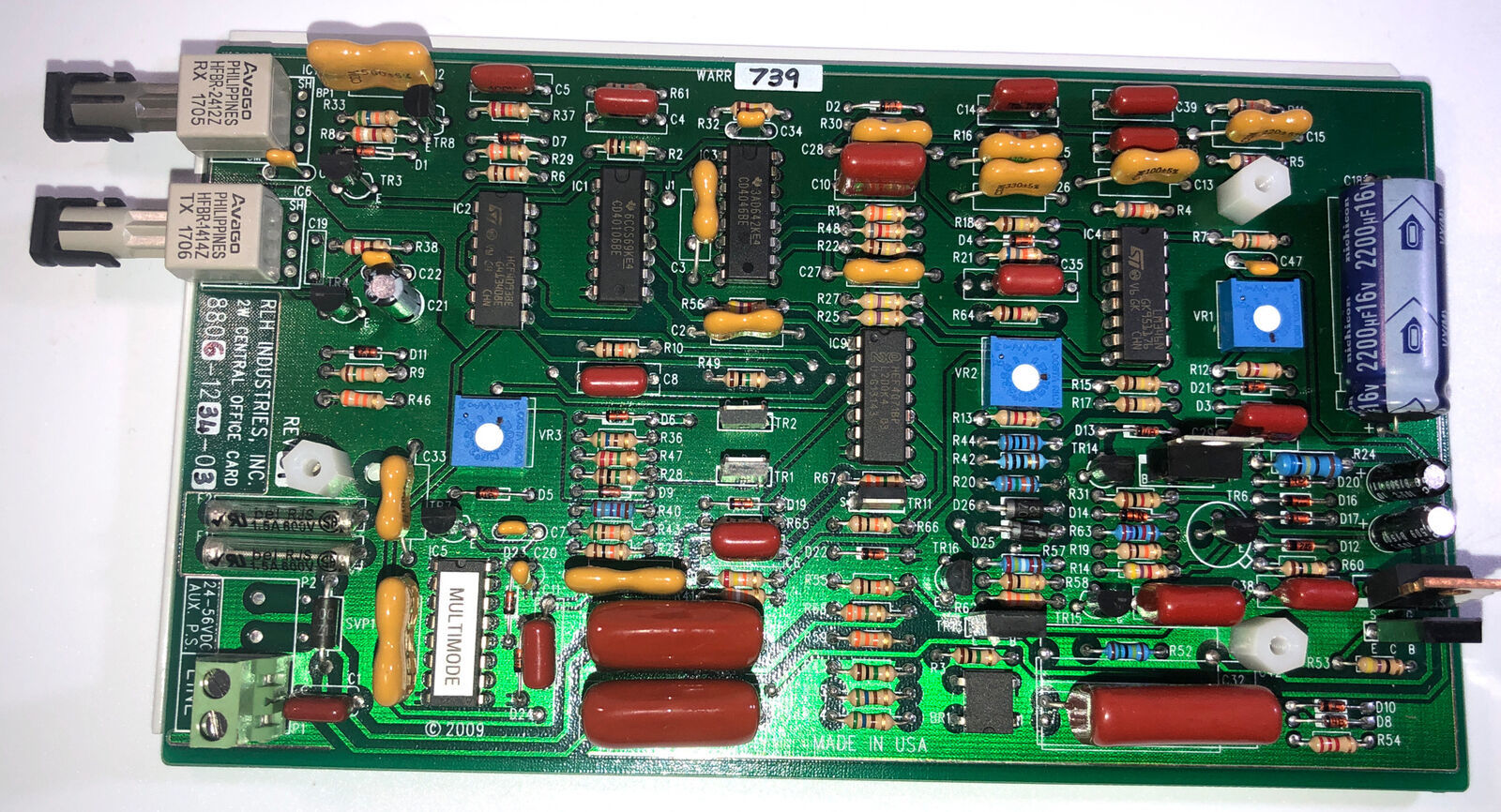

RLH Industries Inc #8806-1234-03 CO/FXO Card, Multimode, ST, 2.4km/1.5 miles, Dual Fiber VERY RARE Condition is Brand New. Brand: RLH Industries Inc Model: 8806-1234-03 Shipped with USPS First Class Mail . You Will Receive 1 ea RLH Industries Inc #8806-1234-03 CO/FXO Card, Multimode, ST, 2.4km/1.5 miles, Dual Fiber RARE VINTAGE COLLECTIBLE SHIPS N 24 HOURS Packed By Our Award Winning Packaging And Shipping Department Long Time E-commerce Seller For Over 20 Years LIMITED AVAILABILITY Follow Our Store For All New Rare Products Posted Daily and Specials Please click https://www.ebay.com/usr/boughtnowcommerce Inventory Box Number: RLH Industries, Inc. Fiber Optic Link The leader in rugged, fiber opc technology DATA SHEET: RLH Industries, Inc. 2 Wire POTS For Fiber Link Card System The 2 Wire POTS (Plain Old Telephone Service) system provides transmission of standard analog POTS, telemetering, or PBX loop start signals over two optical fibers. The system transmits signals in the voice-frequency or audio range (300Hz-3.4KHz) while providing ringing and off-hook detection. Common applications include telephone, faxes, and dial-up modems. The card is compatible with any RLH Fiber Link card housing or shelf, is temperature hardened for tough environmental conditions. Note: Special options are available for forward disconnect (SM07) and square wave ringing option (SM10). Key Features; Environment Hardened to operate in -40F to +158F (-40C to +70C). Power FXO/CO cards are simplex powered General Specifications; Transmission method- Maximum Fiber Loss / Distance* Fiber Type-Fiber Connector Types Wire Connector. Bandwidth -Dialing Protocol Ringing. Drop Voltage / Current Insertion Loss: Surge Protection Power Requirements Frequency modulated light via two optical fibers Multimode: 10dB / 1.5 miles (2.4km) Single-mode: 8dB / 9 miles (15km) SM Long Haul: 26dB* / 37 mi. (60 km), *min. required loss -8dB Note: Distances equated using industry standard fiber and connector attenuation of 3dB/Km. Fiber condition, splices and connectors may affect actual range. Multimode: 62.5/125?m Single-mode: 8-9/125?m STorSC. Screw clamp, 12-26 AWG 300 Hz to 3.4 KH Pulse or tone dialing Sine wave matched to input frequency, REN 5.0 Square wave ringing option available - SM10 Source voltage selectable between 48V and 14V (power saving) 22 1mA 0dB +/- 0.5dB each direction. PTC thermistors, CO Card: zener diodes and varistors- 18-56VDC, On-hook 0.5mA maximum, off-hook 18mA minimum (card will sink up to 30mA line seizure). 24-56VDC, 200mA maximum-Line Power (DC Simplex or Talk Battery) Local Power Supply. Sub Card: CO Card: Sub Card: 40 to +158 F (-40 to +70 C), 95% non-condensing. Standard RLH Fiber Link Card Form Factor (7?x4?x1?) LH Industries, Inc. Fiber Optic Link RLH Founder, Robert Harris RLH Industries, Inc. is a world leader in fiber optic link products and engineering services for the telecommunications industry. With engineering and manufacturing in Orange, California, USA, and distribution across North America and internationally, RLH Industries has been designing, engineering and manufacturing fiber optic solutions since 1988. RLH is recognized as an innovator in the fiber optics industry, and has pioneered solutions for High Voltage Isolation, PCS and Critical Communications applications to name a few. RLH stands for Refractive Light Hybrid, which is the underlying technology used in our equipment that provides absolute noise immunity and high voltage isolation via fiber optic technology to the wireless, telco and utility communities. Most of our Fiber Optic Link cards are substationed hardened and manufactured in the USA, where our manufacturing quality control is second to none. And in these uncertain times of rampant outsourcing to foreign-owned manufacturing facilities, we are proud to have our engineering and manufacturing here in the USA where we can maintain the highest standards and strict confidentiality with our customers.
