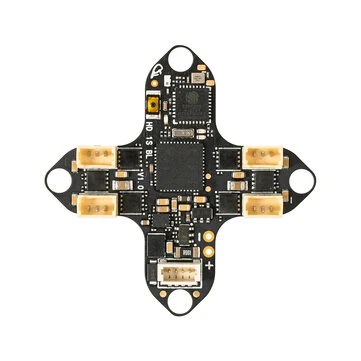

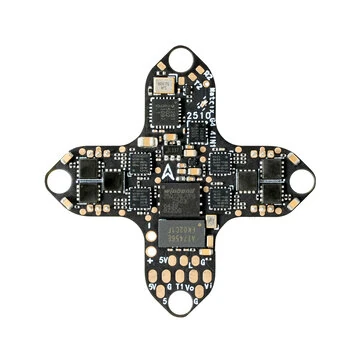

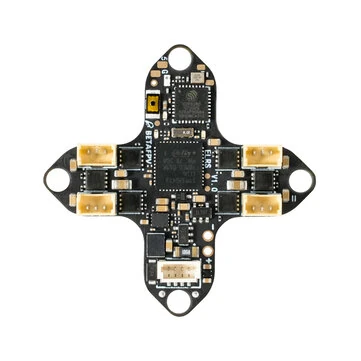

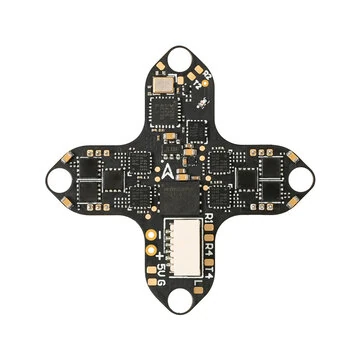

Description: The Matrix 1S Brushless Flight Controller redefines 1S whoop performance with two purpose-driven architectures: the 3IN1 for DJI O4 digital dominance (integrating FC, ESC, and ELRS 2.4G RX while omitting analog OSD), and the 4IN1 for analog mastery (adding built-in OSD + solder pads for external receivers). Both feature the iconic cross-design architecture, newly developed BEC, 18A peak ESCs, and the STM32G473 MCU for 55% faster processinga??delivering effortless setup, pro-tier control, and uncompromised flight dynamics that rewrite 1S standards. Feature: - Dual DNA: 3IN1 (FC, ESC, and ELRS 2.4G RX) for DJI O4 digital dominance (omits analog OSD), 4IN1 for analog mastery with OSD. - STM32G473 MCU: 55% faster processing than F411 for responsive tuning. - Stable Video Transmission: Features a newly developed BEC to ensure consistent power delivery for seamless HD performance. - Enhanced Overcurrent Capacity: Supports 12A continuous current and 18A peak ESC, providing robust performance for demanding flights. - Reliable Precision: Includes an independent 3.3V LDO design to deliver stable, interference-free power directly to the IMU for accurate control. - Whoop-ready Installation: The 3IN1 is equipped with motor plugs and a SH1.0-6Pin HD digital port for a hassle-free installation and maintenance experience, while the 4IN1 has external RX soldering pads for protocol flexibility. Specification: Brand: BETAFPV Model: Matrix Item Name: 1S 12A 3IN1 4IN1 AIO Brushless FC Model Specification FC MCU: STM32G473CEU6 (168MHz) Gyro: ICM42688P Blackbox Memory: 16MB Sensor: Voltage current BEC: 5V/3A UART (3IN1 Version): UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP) UART (4IN1 Version): UART 1 (For VTX), UART 2 (Free), UART 3 (For RX), UART 4 (NONE) ESC: 12A continuous RX: Serial ELRS 2.4GHz (V3.4.3) FC Firmware: Betaflight_4.5.1_BETAFPVG473 (3IN1 version), Betaflight_4.5.2_BETAFPVG473_V2 (4IN1 version) USB Port: SH1.0-4Pin OSD: AT7456E (4IN1 version only) HD Digital VTX Port: SH1.0-6Pin (3IN1 version only) Motor Plug: JST1.25-3Pin Battery Connector: BT2.0 Mounting Size: 25.5mm x 25.5mm Weight (3IN1 Version): 3.8 0.1g (battery connector excluded), 4.2 0.1g (battery connector included) Weight (4IN1 Version): 3.6 0.1g (battery connector excluded), 4.6 0.1g (battery connector included) ESC Power Input: 1S only Current: 12A continuous, 18A peak ESC Firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware Digital Signal Protocol: DSHOT300, DSHOT600 Matrix 1S 3IN1 Matrix 1S 4IN1 F4 1S 5A AIO MCU STM32G473CEU6 STM32F411CEU6 MCU frequency 168MHz 108MHz Gyro, max. sampling rate ICM42688P, 8KHz BMI270, 3.2KHz ESC 12A continuous 1S, 5A Blackbox memory 16M 8M OSD - Betaflight OSD: AT7456E RX Onboard Serial ELRS 2.4GHz Motor plug JST1.25 Weight 3.8g 3.6g 3.64g Ultra-Resilient BEC 1S whoops always fly at voltages as low as 3.3V and digital image transmission requires higher current, placing significant demands on the BEC. To meet these challenges, an advanced BEC has been developed, capable of delivering over 3A of current at ultra-low voltages down to 2.85V. This ensures stable image transmission even in critical situations. While flying to such low voltages isn't recommended, this inovation provides pilots with a greater chance of safely recovering from unexpected situations. Enhanced Continuous 12A ESC Whether powering digital HD systems or high-performance analog builds, 1S whoops demand ESCs that wona??t flinch. Our engineers exceeded expectations, delivering a robust ESC with 12A continuous output and 18A peak capacity on the iconic "cross" flight controller. This ensures optimal thrust-to-weight ratio, reliable performance, and worry-free high-definition flights. Individual Power Supply for IMU Unlike traditional shared power supply designs, the Matrix 1S FC features an independent 3.3V LDO power supply exclusively for the IMU. This inovation eliminates interference, creating a cleaner and more stable environment that enhances flight precision, improves sensitivity, and reduces the risk of performance issuesa??ensuring unmatched stability during every flight. Whoop-ready Installation Equipped with convenient motor plugs and a SH1.0-6Pin HD digital port, the 3IN1 version allows for a completely solder-free installation and maintenance process. Spend less time building and more time flying HD whoops. The 4IN1 version retains soldering pads for external analog RX, giving you protocol freedom while reducing voltage ripple interference for cleaner video signals. Recommended Parts: Matrix 1S Brushless Flight Controller (3IN1) Drones: Meteor65 Pro O4, Meteor75 Pro O4 Motors: 0802SE Motor, 1102 Motor Propellers: GF 35mm 3-Blade, GF 45mm 3-Blade Matrix 1S Brushless Flight Controller (4IN1) Drones: Meteor65 Pro, Meteor75 Pro, Air65, Air75 Motors: 0702 II Motor, 0802SE Motor, 1102 Motor Propellers: GF 1219S 3-Blade, HQ 31mm Ultralight 3-Blade, GF 35mm 3-Blade, GF 45mm 3-Blade Package Included: Model Included Matrix 1S Brushless Flight Controller (3IN1) 1 * Matrix 1S Brushless Flight Controller (3IN1) 1 * Type-C to SH1.0 Adapter 1 * SH1.0-4Pin Adapter Cable 1 * SH1.0-6Pin Adapter Cable 4 * M1.2*4 Self-tapping Screws 4 * M1.4*5 Self-tapping Screws 4 * Shock Absorbing Balls Matrix 1S Brushless Flight Controller (4IN1) 1 * Matrix 1S Brushless Flight Controller (4IN1) 1 * Type-C to SH1.0 Adapter 1 * SH1.0-4Pin Adapter Cable 4 * M1.2*4 Self-tapping Screws 4 * M1.4*5 Self-tapping Screws 4 * Shock Absorbing Balls
