2.89" 20 Characters x 4 Lines 2004 OLED and 50 similar items

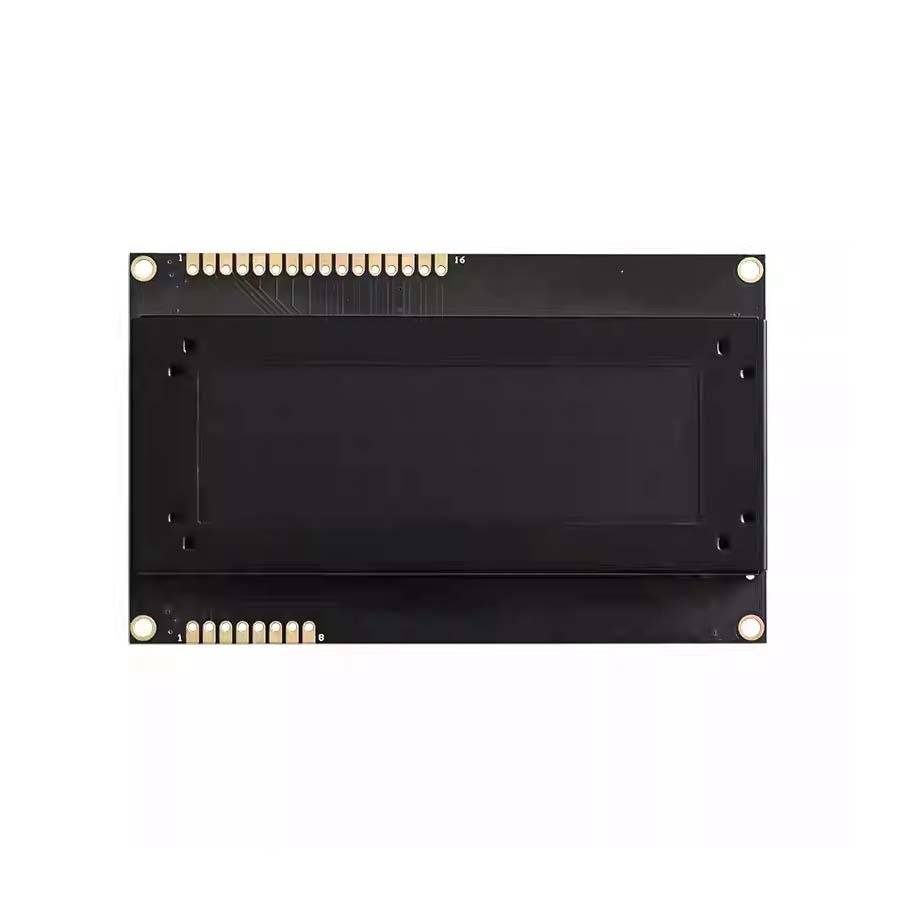

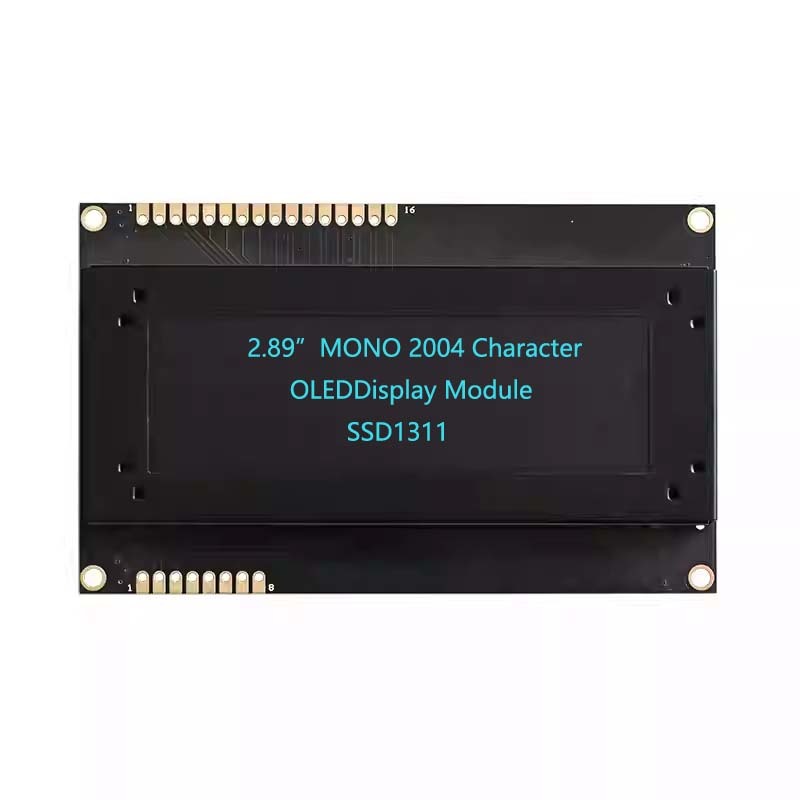

Description: 2.89 inch 2004 character oled display module with PCB OLED 20x4 character is a monochrome character oled display with PCB, 20x4 characters oled display. The 2.89 inch oled module, is a character passive matrix oled display, with FPC connection, it is a COG structure OLED display, it have 20x4 characters, white/blue color available, wide viewing angle, wide temperature, high brightness, high contrast, fast response time and with PCB. since it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module,and it isn't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle.2004 characters OLED display module with PCB could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree. 2.89 inch 20x4 character OLED display module with PCB is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display. Features: 2.89 inch monochrome character OLED Moule. Embedded Independent Driver Chip, Using 8-bit 68XX Parallel Interfaces. emitting light by itself without backlight Low power consumption Parameter: Display Mode : Passive Matrix Display Color : Monochrome(white/Blue) Drive Duty : 1/32 Duty Display Size: 2.89 inch DriverlC:US2066(SSD1311) Pin No:16P Number of Characters: 20 Characters ( 5 8 ) 4 Lines Module Size : 98.00 60.00 Max. 13.60 (mm) Panel Size : 84.50 27.50 2.00 (mm) including ? Anti-Glare polarizer ? Active Area : 56.22 11.52 (mm) Character Pitch: 3.55 5.35 (mm) Character Size: 2.97 4.77 (mm) Pixel Pitch: 0.60 0.60 (mm) Pixel Size: 0.57 0.57 (mm) Interface:8-bit 68XX Parallel Operating Temperature:-40~850 C Storage Temperature: -40~90 C Part No:ZOJK1602I04WCG11 Weight: 47.10 (g) 10% Drawing: Pin Definition: Application: Smart phones smart watch portable health device intelligent on-board camera real-time display pictures battery management equipment IPC controller MP3/MP4 player mobile phone function portable medical equipment, game, etc. Kit Content:1x 2.89 inch 2004 monochrome character oled display in Blue
