7/16"-24 UNF Tap and Die Set, 7/16 X 24 UNF and 41 similar items

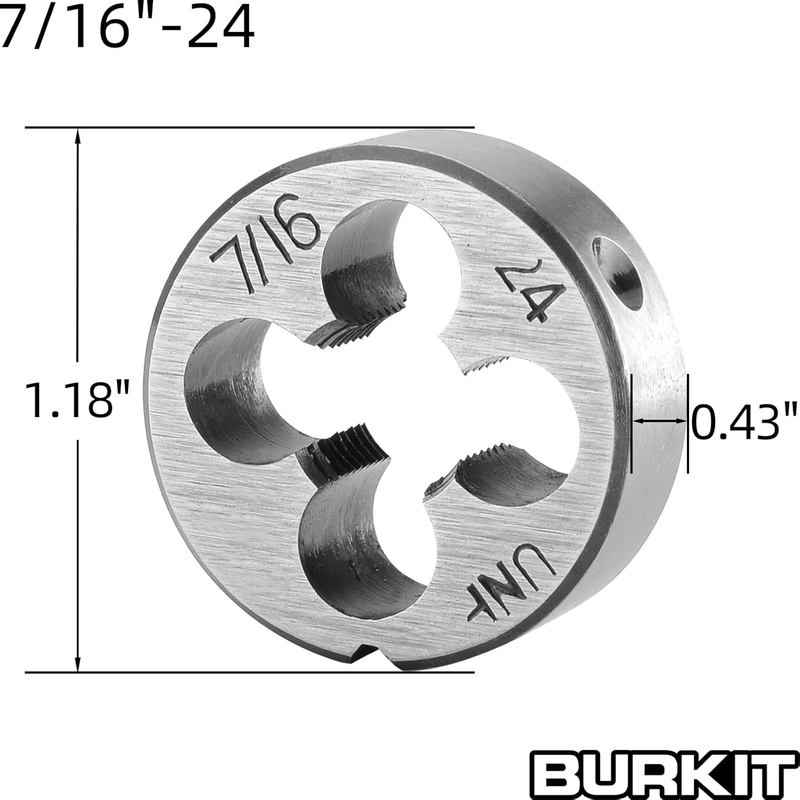

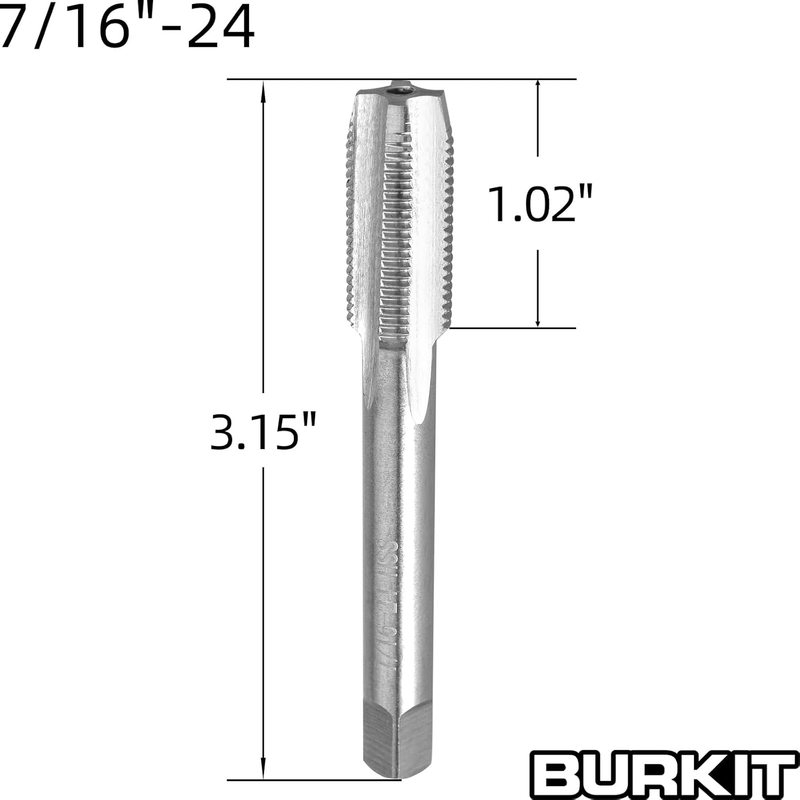

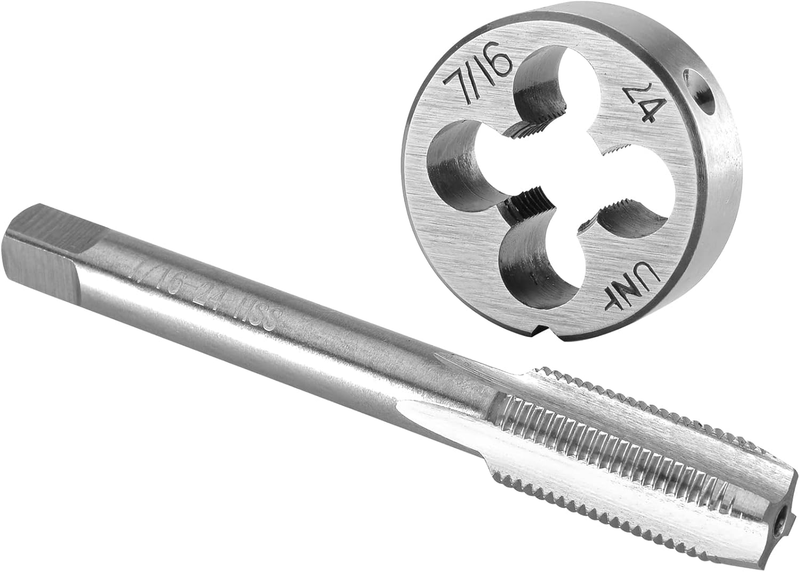

Store New Arrivals Add to Favorite View Feedback Contact 7/16"-24 UNF Tap and Die Set, 7/16 X 24 UNF Machine Thread Tap and Round Description Item model number 7/16"-24 UNF Part Number tap-set-7/16-24-UNF-RH Batteries Required? No Size 7/16"-24 UNF Color Silver Item Weight 2.3 ounces Batteries Included? No Measurement System English/Standard Manufacturer Store Package Dimensions 5.16 x 4.17 x 0.63 inches Teeth Per Inch 24 Teeth per Inch Tap Length: 3.15"/80mm, Thread Head: 1.02"/26mm, Shank Diameter: 8mm, Square Head: 6.3mm x 6.3mm (L*W), TPI: 24, Accuracy Class: 2B. Die OD: 1.18"/30mm, Die Thickness: 0.43"/11mm, TPI: 24, Accuracy Class: 2A. Technology: Straight fluted design, fast chip removal, and no blocking make your threads machining faster and easier. Applications: Widely used in cast iron, copper, brass, abrasive steel, A3 steel, and other metal materials to process threads. Package Include: 1 set 7/16"-24 UNF Tap Die. Product description About Taps Straight flute design, made of 6542 high speed steel. It is used to process threads of various through holes or shallow blind holes. Can process copper, brass, A3 steel, aluminum, cast iron and other materials. Generally used in conjunction with tapping machines, integrated bench drills, CNC lathes, machining centers, etc. Manual processing is also possible. When operating, control the speed according to the hardness of the material, the higher the hardness of the processed product, the slower the speed. Recommended feed rate: Hard steel: 5-10m/min, cast iron: 8-10m/min, ordinary steel: 6-15m/min. About Dies Made of alloy tool steel, hardness and wear resistance. Used to repair external threads. When in use, the conical locking hole of the die is aligned with the screw of the wrench and tightened. The conical keyhole has a strong locking force and is not easy to loosen. Suggest: Appropriate lubricating oil should be added to the die-cutting edge when cutting, It is to be reversed every 1/4~1/2 turn to facilitate chip discharge from the chip hole. Tips Please be sure to take protective measures when working, you need to wear goggles and protective gloves. Before tapping confirm whether the diameter of the round hole is appropriate. Be sure to select the appropriate cutting oil for the complex tapping process and apply anti-rust oil for maintenance after use. When tapping, control the speed according to the hardness of the material, it is necessary to add water or coolant to cool down to prevent excessive temperature and reduce tap loss. ABOUT US We offer the best prices around on high quality products. Our E-store includes media such as books, movies, music and games while offering electronics, toys, sporting apparel, clothing, tools, general home, garden items and more. SHIPPING We are always working hard to ensure your package arrives as soon as possible. Please understand that some factors like weather, high postal traffic, and the performance of shipping companies are outside of our control. RETURNS We offer a 30-Day Return Policy on items which you are not completely satisfied with. You have the option for a full-refund or an exchange of the item. PAYMENT We accept PayPal. CONTACT US This page content is yet to come Please ad us to your favorite seller and visit again later Thank You CUSTOMER SATISFACTION We try our very best to make sure every customer is completely satisfied. If there's a problem, message us! We're happy to help.
