[Lot of 5] SMC LVM20R3-5C-X109-Q Compact Direct Operated Solenoid Valve Chemical
Los buques de
United States
Las opciones de envío
Los buques de 2 business days Detalles
No hay precio de envío se especifica en ES
Los buques de
United States
Política de oferta
OBO - El vendedor acepta ofertas en este artículo.
Detalles
La política de devoluciones
None: All purchases final
Protección de compra
Opciones de pago
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
Las opciones de envío
Los buques de 2 business days Detalles
No hay precio de envío se especifica en ES
Los buques de
United States
Política de oferta
OBO - El vendedor acepta ofertas en este artículo.
Detalles
La política de devoluciones
None: All purchases final
Protección de compra
Opciones de pago
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
Rasgos del artículo
| Categoría: | |
|---|---|
| cantidad disponible: |
6 En stock |
| Condition: |
New |
| MPN: |
LVM20R3-5C-X109-Q |
| Suitable Media: |
Air |
| Country/Region of Manufacture: |
Japan |
| Response Time: |
20 ms or less (at pneumatic pressure) |
| Valve Operation: |
Solenoid |
| Valve Width: |
20mm |
| Enclosure: |
IP40 or equivalent |
| Proof Pressure: |
0.45 MPa |
| Unit Type: |
Unit |
| Number of Ports: |
2 |
| Volume of Valve Chamber: |
84 μl |
| Unit Quantity: |
5 |
| Alternate MPN: |
LVM20R3-5C-Q |
| Leakage: |
Zero leakage, either external or internal (at water pressure) |
| Valve Construction: |
Diaphragm type direct operated poppet (Rocker type) |
| Fluid Temperature: |
0 to 50 degrees Celsius (with no condensation) |
| Orifice Diameter: |
2mm |
| Operating Pressure Range: |
-75 kPa to 0.3 MPa |
| Ambient Temperature: |
0 to 50 degrees Celsius |
| Weight: |
80g |
| Rated Voltage: |
12, 24V |
| Coil Insulation: |
Class B |
| Brand: |
SMC |
| Coil Switching Noise: |
60 dB |
| Valve Type: |
Normally Closed (N.C.) |
| Allowable Voltage Fluctuation: |
±10% of rated voltage |
| Mounting Orientation: |
Free |
Detalles del anuncio
| Las políticas del vendedor: | |
|---|---|
| Envío de descuento: |
Pesos de envío de todos los elementos se suman para el ahorro. |
| Publicado en venta: |
Más de una semana |
| Artículo número: |
1672041734 |
Descripción del Artículo

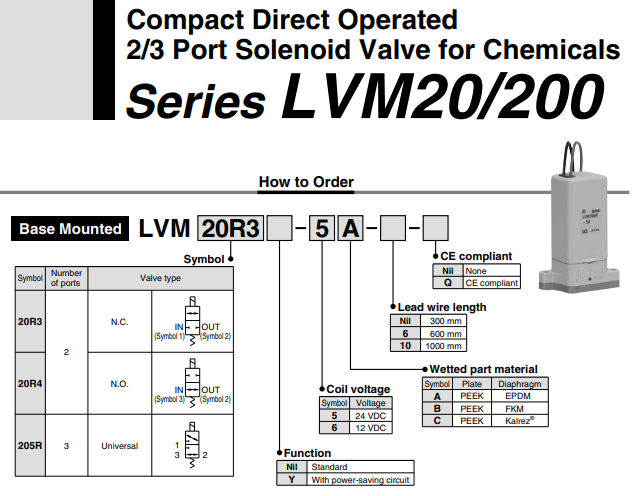

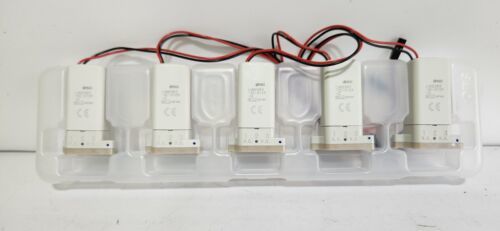

Each set comes with 5 valves. I was unable to find information on the "X109" designation of the model number, but it appears it refers to the lead wire length, per SMC documentation (I've included a picture of the specific part of the documentation, and it is also linked below).
https://www.smcpneumatics.com/pdfs/LVM_new.pdf
Series LVM is a compact, direct acting, 2/3 port solenoid valve for chemicals. The unique construction reduces residual liquid to a minimum. Superior resistance to chemicals requires less maintenance. Service life (based on SMC test conditions) is 10 million cycles or more.
