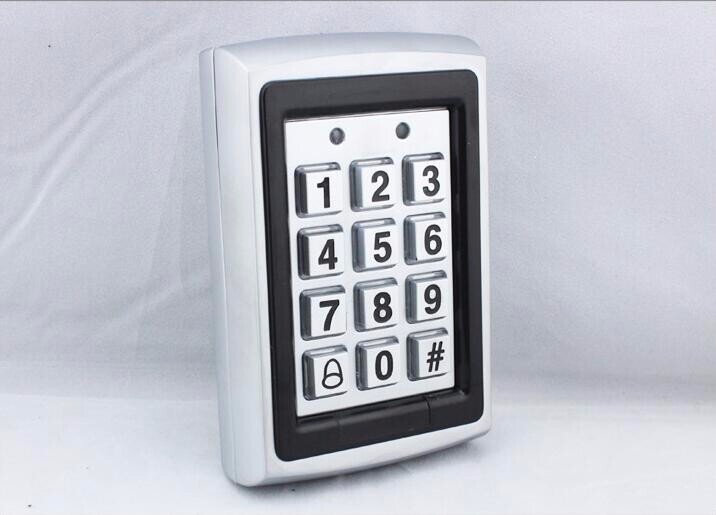

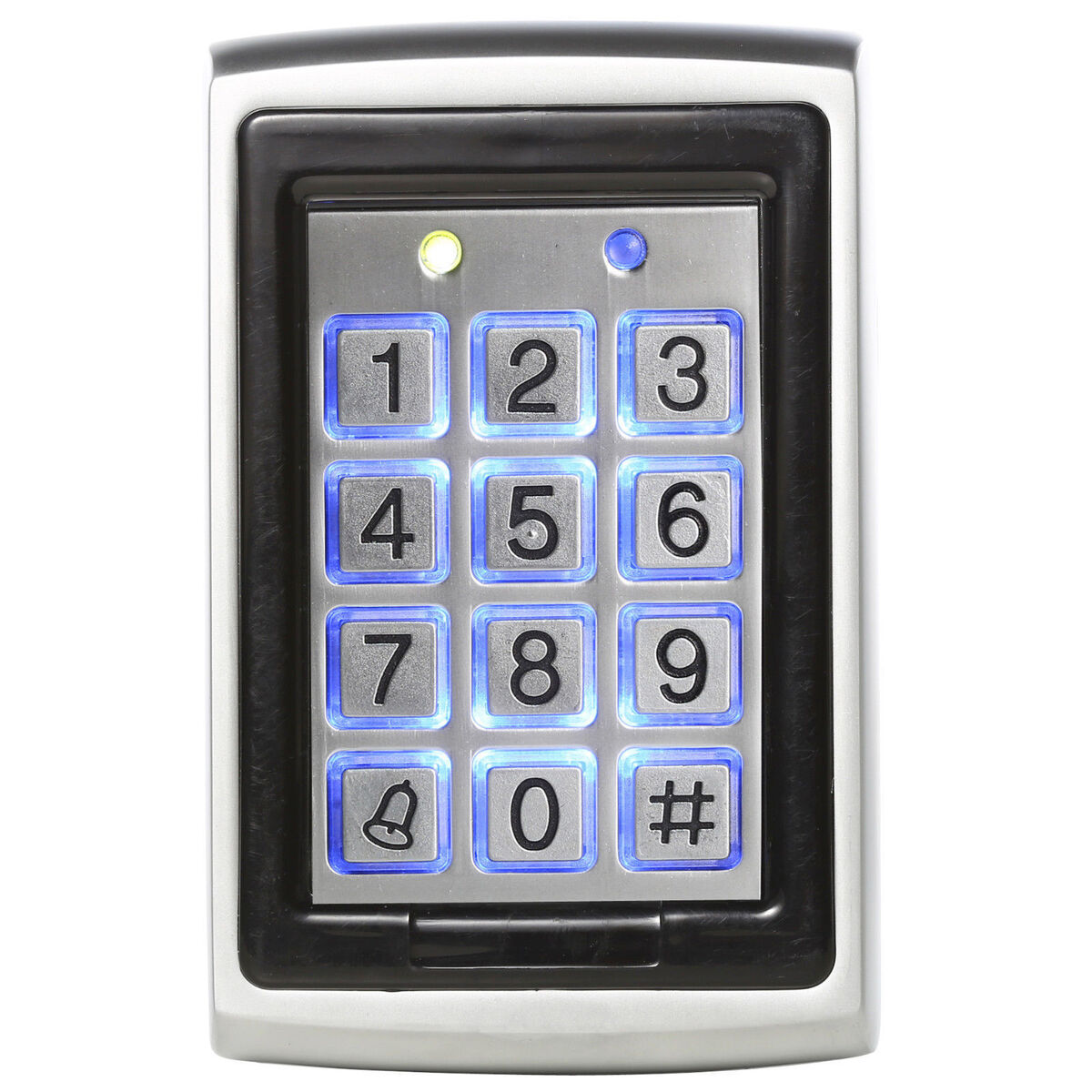

Features: High quality and high security Metallic case for better protection. Non-waterproof Support 1000 standard users Support entry modes: Password Only / ID Card Only / Password + ID Card Can add card number and delete card number as your requirement Classical appearance with useful function Alarm function With lock relay output, secure / normal Mode, NO / NC output Built-in bell button can connect a external bell Designed for home and office Built-in proximity card reader (125KHZ ASK modulation) Built-in keypad for PIN code entry Sensitively and response quickly Auxiliary input auxiliary output 8 Auxiliary Modes including : door ajar, forced door, shunt, door monitor, normal / secure Internal buzzer 2 status / programming interface LED'S 2 modes of operation : normal mode, secure mode 3 user levers : normal user, secure user, master user Code search feature that helps make maintaining user codes easier Built-in case and back tamper bell, chime, siren, battery backup, tamper output features available with IBA power supplies Programmable siren time Programmable lock strike release time Details: Wiring diagram: Specifications: Access Control Input Voltage DC 12V Input Current - Standby : 40mA (not including attached devices) - Max : 130mA (not including attached devices) Frequency 125kHz Read range 3-10 cm Modulation ASK at 125kHz Compatible Cards All 26-bit EM cards Operation Temperature -31C~63C Dimension - Approx. 76 (W) x 120 (H) x 27 (D) mm - Approx. 3? (W) x 4-3/4? (H) x 1? (D) inch Net Weight Approx. 450g Output Lock Strike Relay 5A Auxiliary Relay 5A LockStrike Control Output Collector open output (25mA) Auxiliary Control Output Collector open output (25mA) Input REX N.O., dry contact Auxiliary Input (In / Monitor) N.C., dry contact in Monitor Mode N.O., dry contact input mode
