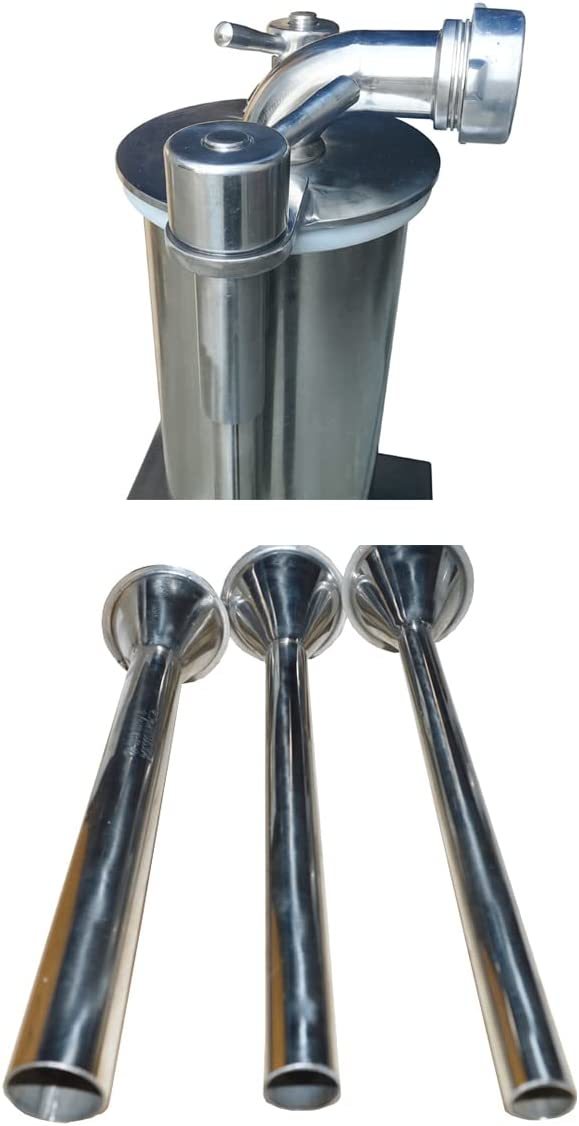

Hydraulic Automatic Sausage Filling Machine SF-350 Introduction The machine adopted hydraulic pressure system to fill the sausage, lowness noise, high efficiency and easy operation. To adopt high quality elements and hydraulic pressure element, they are all high quality and long life. Bowl and the body of machine are made of stainless steel, luxury and beautiful, it conforms to food sanitation. Move style body, more area to be used. To adopt the knee controlling switch, more human nature. Parameters Voltage 110V/60HZ Volume 35L Power 1.1KW Productivity 600kg/h package size 27*23*57inch Weight 200.6kg/442.2lbs Detail Display No.1 Stainless steel enema nozzle The diameters of the three sizes are 16mm,19mm and 25mm respectively. No.2 Universal wheel With foot brake universal wheel, easier to control the direction. Operation 1. At the first time, before using machine, please open cover board which on the left, then screw the exhaust hole that on top of the oil box. At last, close the cover board. 2. Before working it, please clean up the parts which will be touched the meat, such as bowl?pressure cover?piston etc. 3.Connect with power supply 110V,60Hz, and must be had the reliable ground protection. 4.Put the mixed meat filling into the bowl and tighten the pressure cover. 5.Put on the tap, then put on the casing and adjust the changeover switch to "1" position, then press the knee controlling switch and at the same time, to adjust the adjusting throttle valves of the operation board slowly, to adjust the filling speed. 6.Begin to fill the sausage. 7.After finished filling a sausage, to loosen the controlling switch, change the casing. 8.After used up one bowl of meat, adjust the changeover switch to "2" position, then press the knee controlling switch, the piston will return to the bottom of the bowl. Then as per the step of 4 and 5 and 6 and 7, repeat working. Item included Hydraulic Automatic Sausage Filling Machine SF-350(154048)
