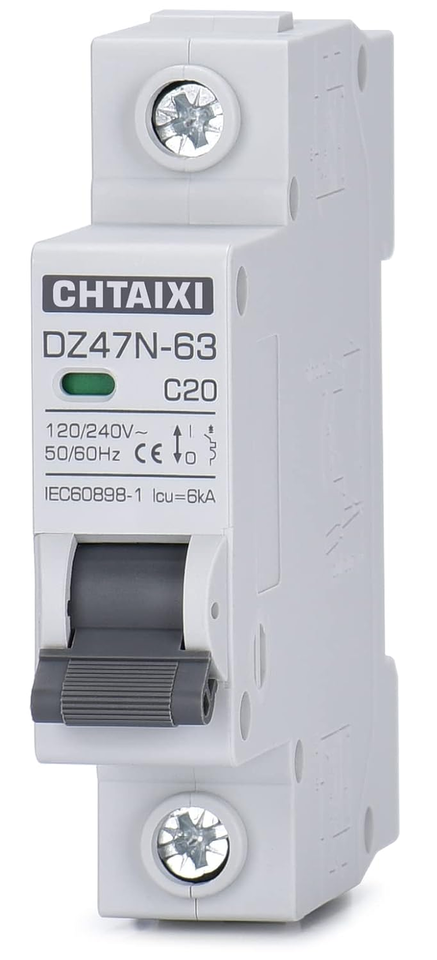

Store New Arrivals Add to Favorite View Feedback Contact AC Miniature Circuit Breaker, 20 Amp 120V/240V 1 Pole DIN Rail Mount Circuit Breaker, Thermal Magnetic Trip, Solar AC Disconnect Switch MCB C20 Description Item model number DZ47N-63 Style 20 Amp Current Rating 20 Amps Mounting Type DIN Rail Mount Circuit Breaker Type Standard Product Dimensions 2.91"D x 1.42"W x 3.26"H Country of Origin China FUNCTIONS: Used to protect 110V 120V 220V 230V AC circuit from overload and short circuit damage, and can also be used for control and isolation. CURVE C: Magnetic trip range 5-10 times rated current. QUALITY: Silver alloy contacts, flame retardant material shell, color indicator. APPLICATION: Can be used in solar ac systems, RV, home circuits, or other 50/60Hz AC systems. INSTALLATION: Screw clamp wires, 35mm DIN rail mount. Product Description Specifications Product type: AC Miniature Circuit Breaker Rated operational voltage: 120V / 240V AC Rated current [In]: 6A / 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) Poles: 1P / 2P / 3P (optional) Trip unit technology: Thermal-magnetic Curve code: C Breaking capacity: 6 kA Ics=Icu Uimp: 4 kV Mechanical durability: 10000 cycles Electrical durability: 4000 cycles Operating temperature: -13F(-25?) ~ 140F(60?) Mounting support: 35 mm DIN rail Tightening torque: 2.5 N.m Standard: IEC60898-1 Package includes 1 x AC miniature circuit breaker (1P NO DIN rail or screws, 2P/3P with 1 x DIN rail and 2 x screws) Quality Products to Protect Your Electricity Safety Quality Plastic Shell Flame retardant material, sturdy and durable. Indicator Window Green Indicator: OFF Red Indicator: ON Silver Alloy Contacts Reduce the heat generated by arcing during disconnection. Reduce the wear of the contacts. Improve electrical durability. Installation DIN Rail Install the 35mm DIN rail horizontally in a stable environment. (package: 1P NO DIN rail, 2P with 1 x DIN rail and 2 x screws.) Installation Hang the circuit breaker slot on the DIN rail. Push the lower end of the circuit breaker into the DIN rail. Dismounting Push the circuit breaker upward. Turn the upper end of the circuit breaker out of the DIN rail. ABOUT US We offer the best prices around on high quality products. Our E-store includes media such as books, movies, music and games while offering electronics, toys, sporting apparel, clothing, tools, general home, garden items and more. SHIPPING We are always working hard to ensure your package arrives as soon as possible. Please understand that some factors like weather, high postal traffic, and the performance of shipping companies are outside of our control. We offer free shipping to the lower 48 states and ship within 2 business days of payment, usually sooner. We do not accept P.O. Boxes. Please provide a physical address. For shipping outside of the continental USA, we only use's Global Shipping Program.The item is shipped to KY and then sent to the rest of the world. International customers are responsible for all duties and taxes. Continue to check out in order to calculate costs for shipping the item to your country. Messages regarding's Global Shipping Program MUST be directed at EXCLUSIVELY. RETURNS We offer a 30-Day Return Policy on items which you are not completely satisfied with. You have the option for a full-refund or an exchange of the item. No returns are available on items shipped outside of the USA. PAYMENT We accept PayPal. CONTACT US This page content is yet to come Please ad us to your favorite seller and visit again later Thank You CUSTOMER SATISFACTION We try our very best to make sure every customer is completely satisfied. If there's a problem, message us! We're happy to help. WE ACCEPT Copyright 2021 AutoDS. | All Rights Reserved
