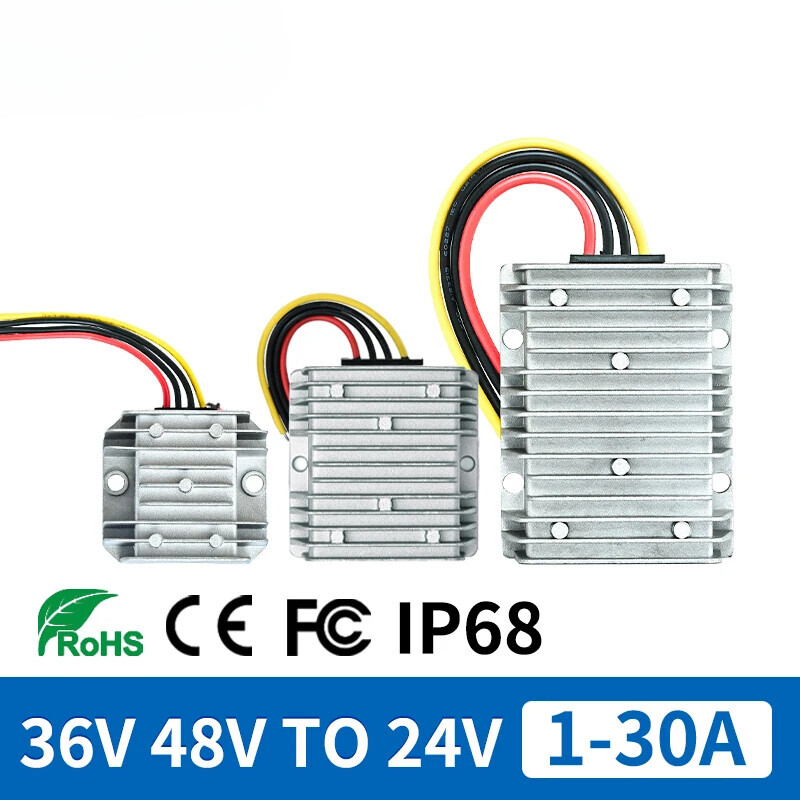

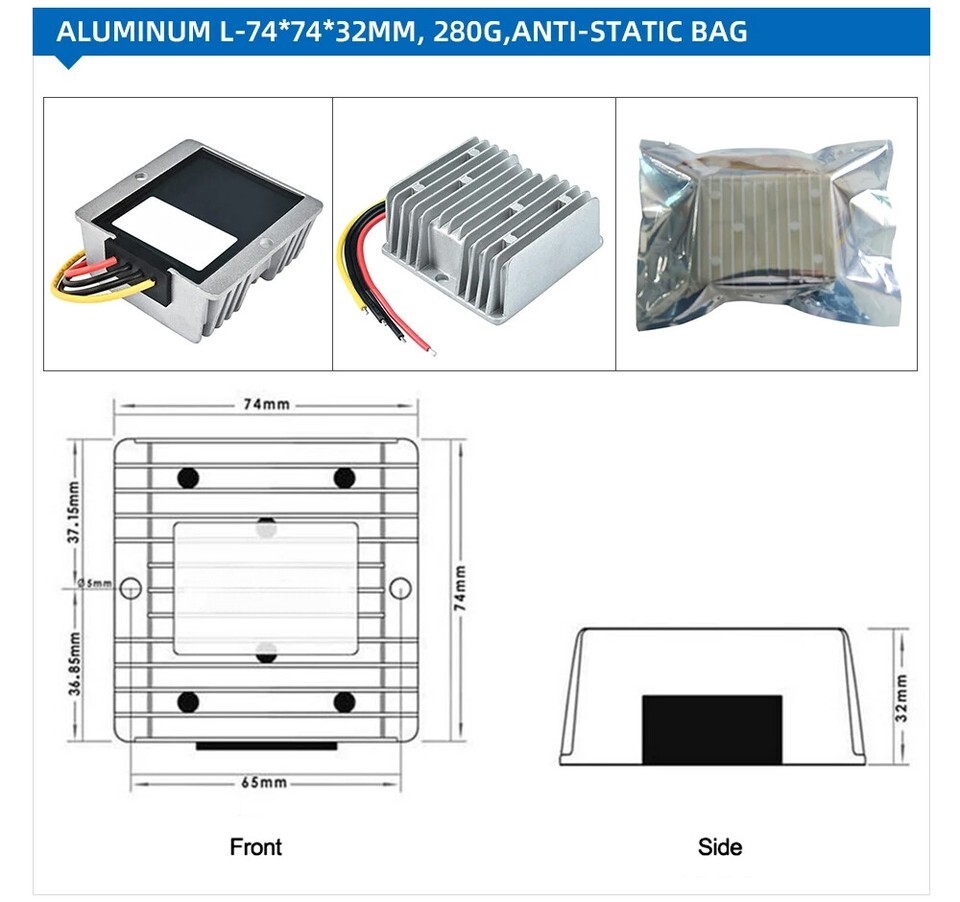

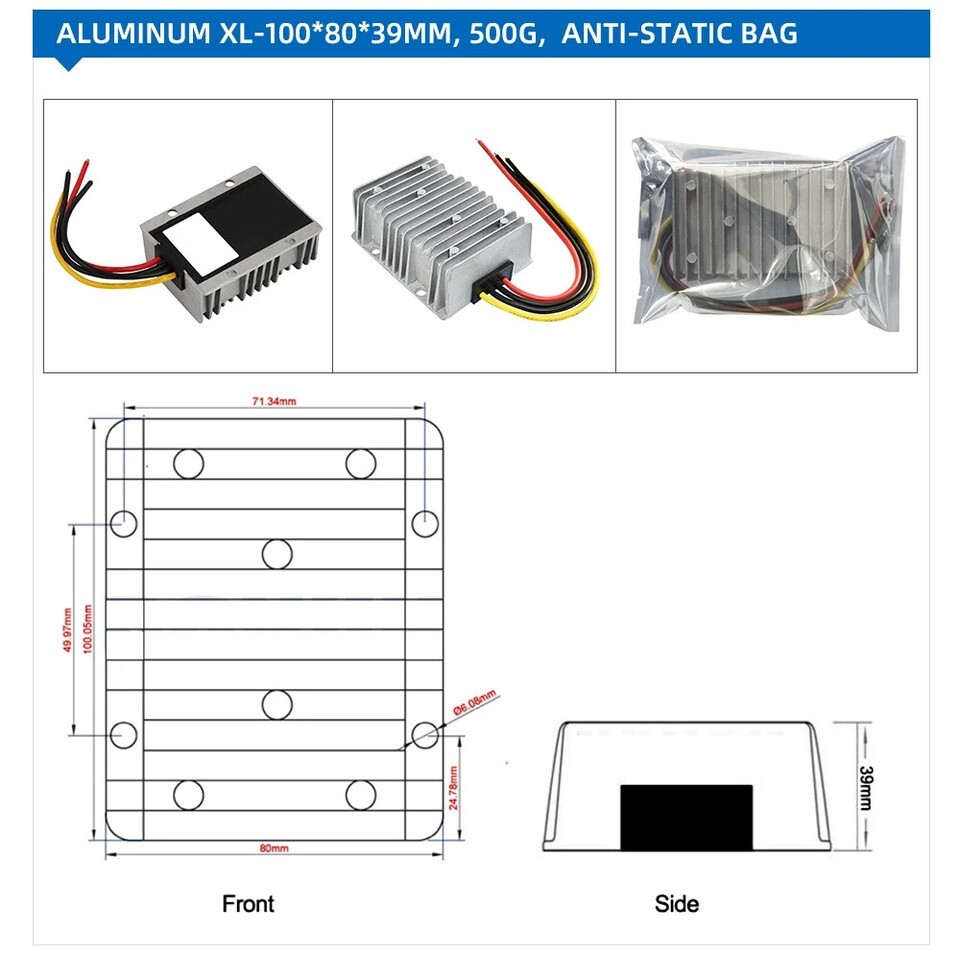

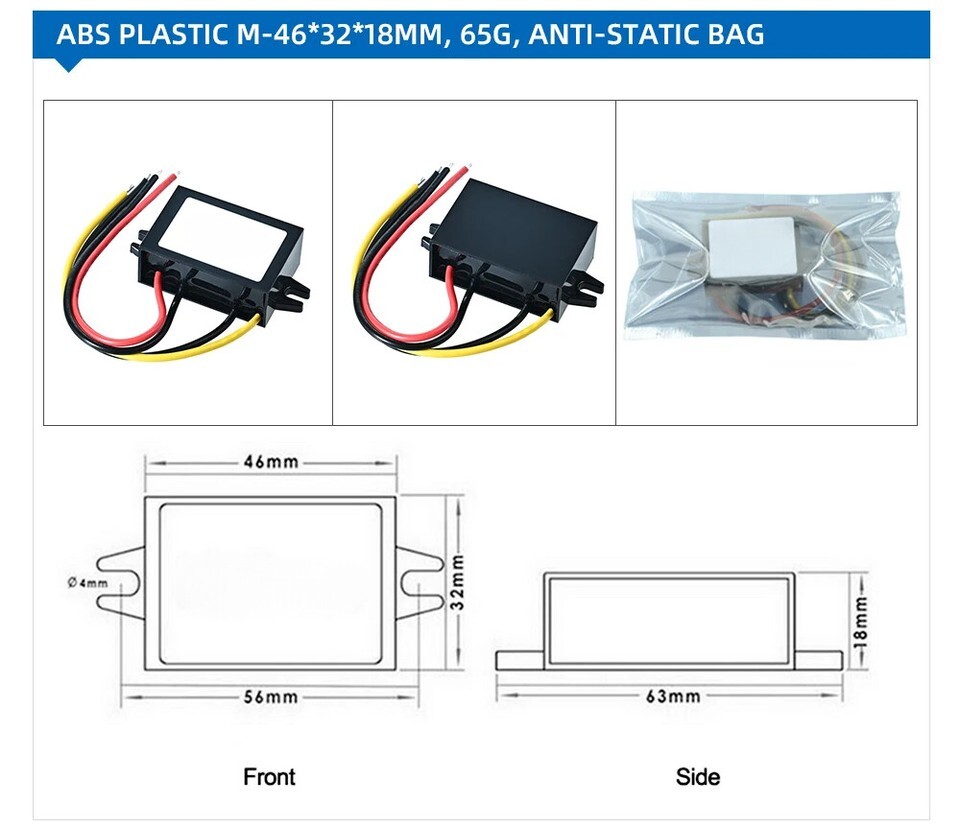

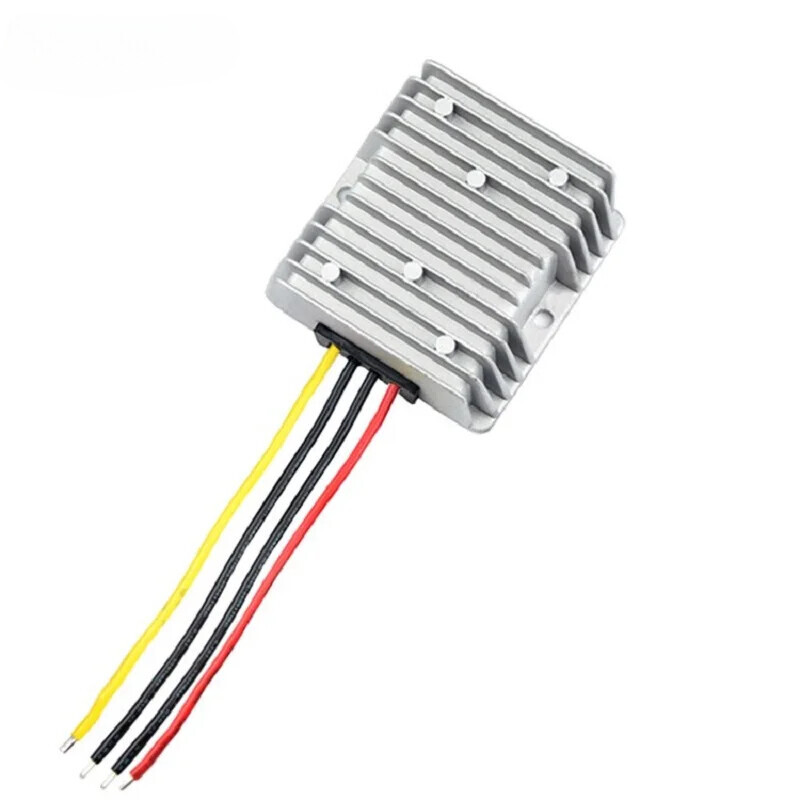

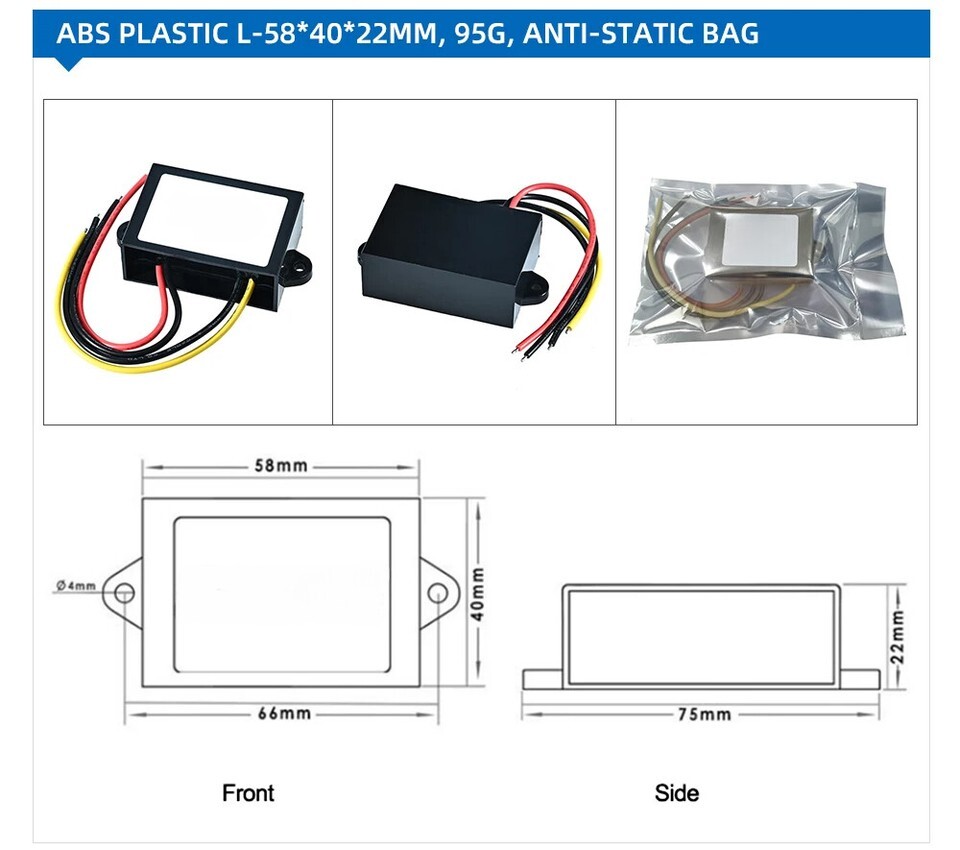

36V 48V DC to 24V DC 1A 3A 5A 10A 20A 30A Buck Step Down Voltage Power Converter 36 48 Volt to 24 Volt Golf Cart Regulator Model Input Voltage Range Output Voltage Output current Output power max Conversion Efficiency Dimension excluding cable Net Weight F60J24V1A2S DC 30-60V DC 24V 1A max 24W max 90% 46*32*18mm 65g F60J24V2A2S DC 30-60V DC 24V 2A max 24W max 90% 46*32*18mm 65g F60J24V3A2S DC 30-60V DC 24V 3A max 72W max 90% 46*32*18mm 65g F60J24V5A2S DC 30-60V DC 24V 5A max 120W max 90% 46*32*18mm 65g F60J24V3A3S DC 30-60V DC 24V 3A max 72W max 90% 58*40*22mm 95g F60J24V5A3S DC 30-60V DC 24V 5A max 120W max 90% 58*40*22mm 95g F60J24V5A5L DC 35-60V DC 24V 5A max 120W max 90% 74*74*32mm 280g F60J24V8A5L DC 35-60V DC 24V 8A max 192W max 90% 74*74*32mm 280g F60J24V10A5L DC 35-60V DC 24V 10A max 240W max 90% 74*74*32mm 280g F60J24V15A5L DC 35-60V DC 24V 15A max 360W max 90% 74*74*32mm 280g F60J24V20A5L DC 35-60V DC 24V 20A max 480W max 90% 74*74*32mm 280g F60J24V30A6L DC 35-60V DC 24V 30A max 720W max 90% 100*80*39mm 500g Product Name DC DC Converter 36V 48V to 24V 1A~30A Max Brand Name Fulree Model No. F60J24V*A**(First * for current Second ** for case No) Module Properties non-isolated buck module Rectification synchronous rectification Input cable length 12cm Input Voltage DC 36V 48V Input Voltage Range DC 30-60V for 1A~5A / DC 35-60V for 5A~30A Outputcable length 12cm Output Voltage DC 24V Output Current 1A/2A/3A/ 5A/8/10A/15A/20A/30A Max Output Power 24W/48W/72W/120W/192W/240W/360W/480W/720W Max Conversion Efficiency 93% Voltage regulation 1% Load regulation 2% Ripple (Full load test) 150mV No-load current 100mA Working Temperature -40~80?( If ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation) Waterproof Rating IP68 Protection Over-current protection / Overheating protection / Short circuit protection / waterproof IP68 design, anti-shock protection Application mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on. Case Material As above table Product Size (L x W x H) As above table Product Weight As above table Warranty 12 months Cooling Way Free air convection OEM ODM Service Acceptable
