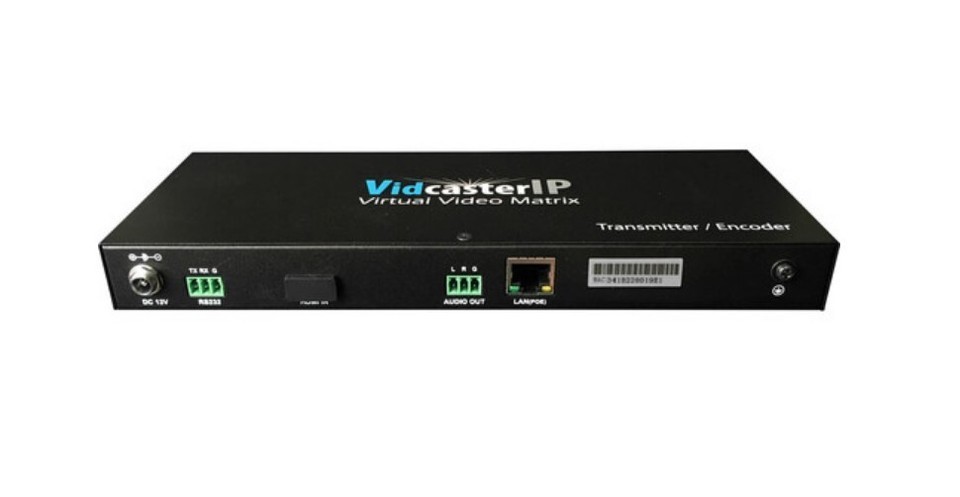

Data-Tronix DT-HDVD-IPSTR-ENC H.264 HDMI Encoder with VidCasterIP System ??NEW?? The H.264 HDMI Encoder with VidCasterIP System from Data-Tronix is used with H.264 decoders to deliver streaming media over IP networks, providing complete end-to-end streaming systems. This live encoder offers one HDMI input, two streaming media outputs, and one stereo audio de-embedding output. It employs standards-based H.264/MPEG-4 AVC encoding and supports input signals up to 1920 x 1200 @ 60 Hz. The encoder is capable of outputting two IP streams. One large IP stream supports a streaming resolution from 480p @ 60 Hz to 1920 x 1200 @ 60 Hz to view a video on the decoder side, while the other small one supports resolution 352 x 288 @ 5 Hz to easily fully-preview video from an encoder on PC software or iPad. The encoder supports PoE and can be remotely powered by compatible power source equipment such as a PoE Ethernet switch, thus eliminating the need for a nearby power outlet. The encoder offers integration-friendly control features such as PC configurator and IP controller providing simple, flexible control and management options. In addition, it includes RS-232 pass-through capacity to control a third-party device, such as a projector, through IP configurator and IP controller on your computer. Encoding control provides adjustments for encoding bit rate and quality. By extending A/V signals over networks, A/V system capability is significantly expanded. The VidCasterIP System offers solutions for conference rooms, shopping malls, hotels, high-resolution signage, monitoring centers, schools, corporate training environments, and more. Key Features Streams HDMI signals over IP networks Supports live IP video stream encoding Use with H.264 decoders to provide complete end-to-end streaming systems Features one HDMI input, two streaming media outputs, and one stereo audio de-embedding output Supports the resolutions of input signals up to 1920 x 1200 @ 60Hz Capable of outputting two IP streams One large IP stream supports a streaming resolution from 480p @ 60 Hz to 1920 x 1200 @ 60 Hz to view video on the decoder side, while the other small one supports a resolution of 352 x 288 @ 5 Hz to easily fully-preview video from an encoder on PC software or iPad Offers integration-friendly control features such as PC configurator and IP controller Offers RS-232 pass-through capacity to control a third party device, such as a projector, through IP configurator and IP controller on your computer Use with the IP controller for matrix control and management via LAN (Telnet Web GUI), as well as for allowing the third party control system to configure and manage the streaming systems Supports PoE to be remotely powered by compatible power source equipment, eliminating the need for a nearby power outlet Employs standards-based H.264/MPEG-4 AVC video encoding Supports HDCP Configurable encoding data rate up to 30 MB/s Supports AutoIP, zero-configuration networking (zeroconf), a set of special technologies that automatically assign dynamic IP addresses to encoders on startup and a server-less method of choosing an IP address Supports communication protocols used on the Internet such as IP, TCP, UDP, IGMP, and Telnet The DT-HDVD-IPSTR-ENC is the encoding unit for the VidCasterIP HD distribution system. The encoders (transmitters) receive an HDMI signal from a video source such as a digital signage player, Blu Ray player, set top box, CCTV camera, etc. The transmitter encodes the signal and places it on the network where it may be decoded at any point on the LAN. UPC: 819210011825 Note: If you also want this along with the decoder, we have it listed as a set! Just look in our store under electronics We take our reputation seriously, we buy and sell online, so we understand the value of trust! If you are unsatisfied with your order, please contact us and we will work with you to resolve it to your satisfaction! Thanks for looking at our listing and supporting our small family business! SHELF: WH-Q
