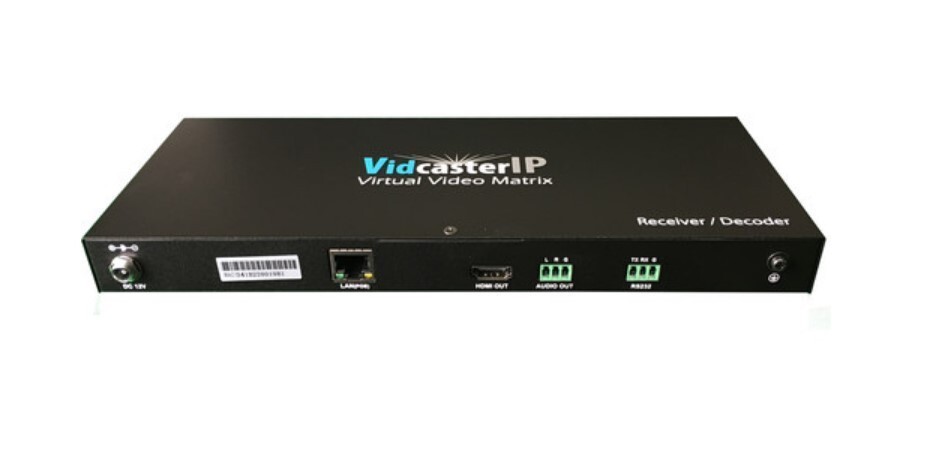

Data-Tronix DT-HDVD-IPSTR-RX H.264 HDMI DECODER with VidCasterIP System ??NEW?? Data-Tronix DT-HDVD-IPSTR-RX Overview The H.264 HDMI Decoder with VidCasterIP System from Data-Tronix uses H.264 encoders to provide complete end-to-end streaming systems. It integrates one streaming media input with one HDMI output and one stereo de-embedding audio output. This live decoder employs standard H.264/MPEG-4 AVC video decoding and supports streaming resolutions up to 1920 x 1200 @ 60 Hz high-performance signal processing scales and optimizes video input signals to obtain the intended viewing effects. The output resolutions range from 480p @ 60Hz to 1920 x 1200 @ 60 Hz scaled based on the EDID of the display. Also, a fixed resolution can be selected from 480p @ 60 Hz to 1920 x 1200 @ 60 Hz for output using PC configurator. The decoder supports PoE function and can be remotely powered by compatible power source equipment such as a PoE Ethernet switch, eliminating the need for a nearby power outlet. It also features CEC function, which allows you to make TV sets play and standby through the PC configurator. It offers integration-friendly control features such as PC configurator and IP controller providing simple, flexible control and management options. In addition, the decoder includes RS-232 pass-through capacity to control a third-party device, such as a projector, through IP configurator and IP controller on your computer. The VidCasterIP System offers solutions for conference rooms, shopping malls, hotels, high-resolution signage, monitoring centers, schools, corporate training environments, and more. Supports live IP video stream decoding Use with H.264 encoders to provide complete end-to-end streaming systems Integrates one streaming media input, one HDMI output, and one stereo audio de-embedding output Supports streaming resolutions up to 1920 x 1200 @ 60 Hz Offers auto scaler function where output resolutions range from 480p @ 60 Hz to 1920 x 1200 @ 60 Hz scaled based on the EDID of the display A fixed resolution can be selected from 480p @ 60 Hz to 1920 x 1200 @ 60 Hz for output using PC configurator Offers integration-friendly control features such as PC configurator and IP controller Offers RS-232 pass-through capacity to control a third-party device, such as a projector, through IP configurator and IP controller on your computer Use with the IP controller for matrix control and management via LAN (Telnet Web GUI), as well as for allowing the third-party control system to control and manage the streaming systems Employs standards-based H.264/MPEG-4 AVC video decoding Supports HDCP Supports PoE to be remotely powered by compatible power source equipment, eliminating the need for a nearby power outlet Features CEC function Supports AutoIP, zero-configuration networking (zeroconf), a set of special technologies that automatically assign dynamic IP addresses to decoders on startup and a server-less method of choosing an IP address Supports communications protocols used on the Internet such as IP, TCP, UDP, IGMP, and Telnet Supports seamless switching UPC: 819210011832 Note: if you want both the encoder and decoder, we have this listed as a set as well We take our reputation seriously, we buy and sell online, so we understand the value of trust! If you are unsatisfied with your order, please contact us and we will work with you to resolve it to your satisfaction! Thanks for looking at our listing and supporting our small family business! SHELF:WH-Q
