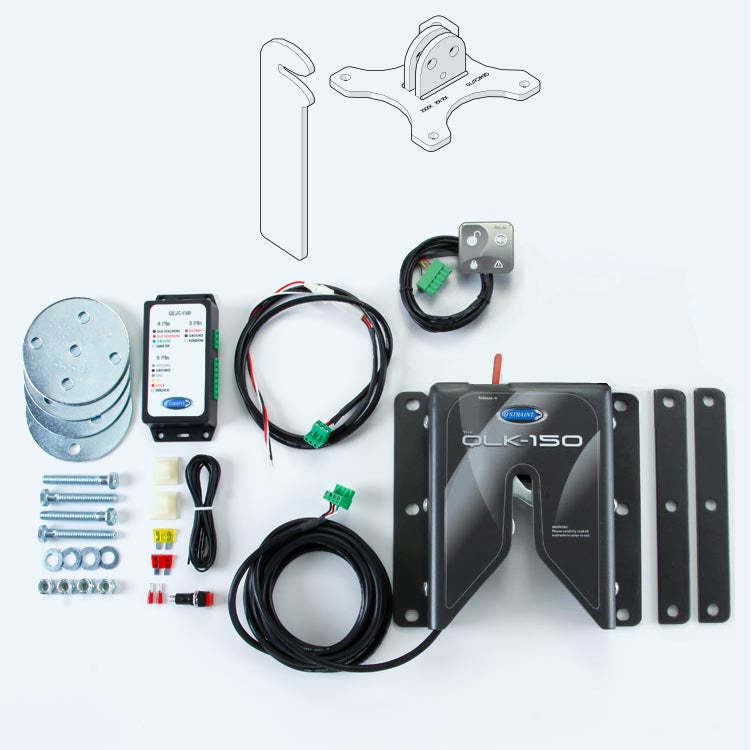

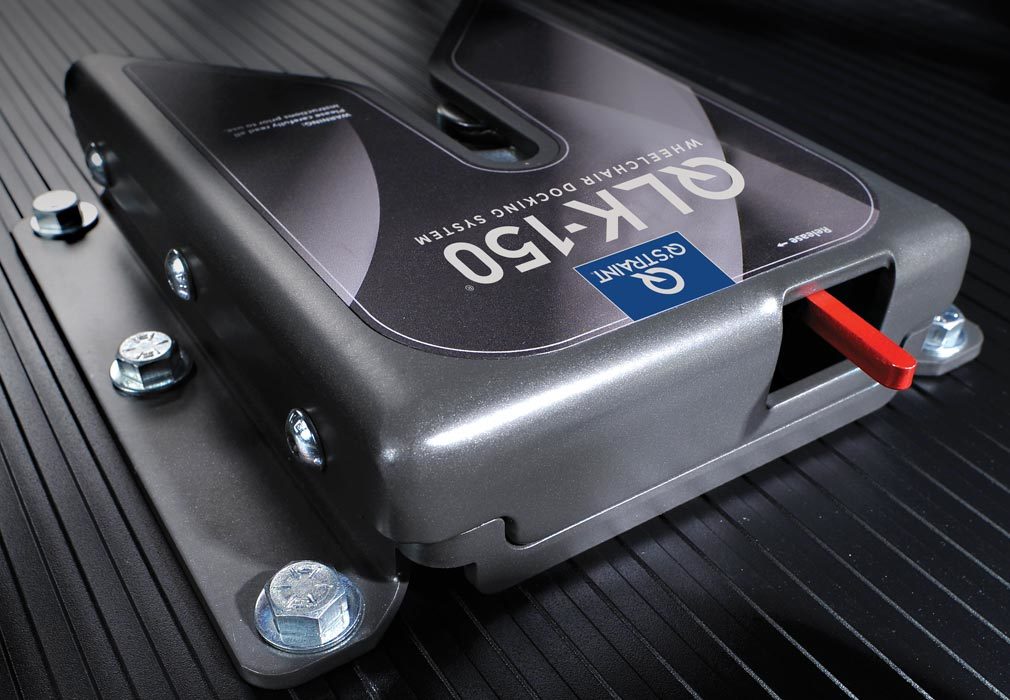

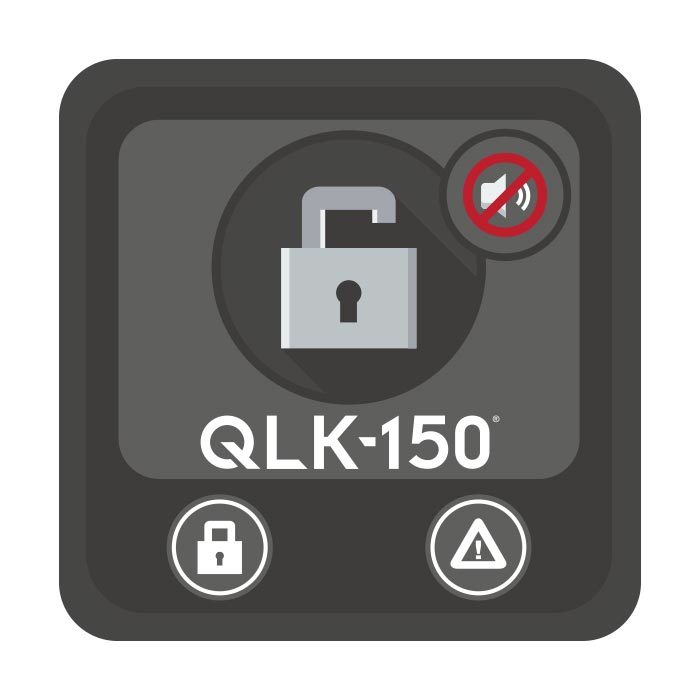

QLK-150 (UK) Docking System Kit with Base Mount and Stabilizer Arm The next step in independent wheelchair securement from Q'Straint, QLK-150 offers more options and features than any other docking system on the market. QLK-150 was designed to work simply, function intelligently, and look beautiful. SKU: Q04S151 Kit Includes: (1) QLK-150 Docking System (Q041000) (1) QLK-150 Dash Control (QS99007) (1) Electronic Control Module (ECM) (QS99012) (1) Stabilizer Arm and Base (1) Auxiliary Release Switch (2) Wire Clips (1) Mounting Hardware Kit PDF QLK-150 BROCHURE QLK-150 PRODUCT SPEC SHEET EXTENSIVE CRASH TESTING The first and only docking system that meets the higher WC/19 wheelchair load requirements. Also, the only system tested Forward, Rearward, and Sideways. SLIM, FLEXIBLE DASH CONTROL Compact design that blends in to modern vehicle interiors. Features a larger touch area and embedded LED indicators to show system status. ADVANCED STABILIZER Our unique Advanced Stabilizer allows the QLK-150 to be installed in the driver position. The stabilizer attaches easily to the QLK-150 cover and improves stability. LOWEST/HIGHEST CLEARANCE Optional base mounts allow for the docking system to be mounted from 1.5? (38mm) all the way up to to 4? (100mm). An optional 1.5? floor mount allows previously un-dockable lower ground clearance wheelchairs such as the Jazzy Select 6 or Ultra Elite, to be easily secured. SMART PROCESSOR The newly designed microprocessor controller sends data directly from the control pad to the base unit putting the latest technology at your fingertips. A single micro-switch eliminates the need for a separate thermal switch, allowing for improved electrical reliability. ECO FUNCTIONS When the user is not in the docking base (sleep mode), the system draws just 76.5 microamps (0.0000765 amps), or about 5 times less than other docking systems. The solenoid release also features a low current draw of between 4.2 ? 9.1 amps (versus the normal 18 amps). PLUG PLAY SERVICE Quick connectors and a removable cover allow for faster maintenance and easier servicing. Screw terminals are easily removed for faster wire routing and eliminate the need for any additional crimping or soldering. REMOTE Seamlessly pairs with your new or existing QLK-150 docking system. HEAT-TREATED STEEL All components are made of high-grade steel with eco-friendly coating, and each component (except for base mounts) is specially treated to increase strength and durability, reduce entry channel warping, and prevent corrosion. SMALLER FOOTPRINT The QLK-150 features a castor interference with shortened cover reducing the size by by 1.5? (38mm) over the QLK-100, eliminating any castor interference. FLUSH SURFACE WITH TAPERED CHANNEL Eliminates snags and gives users a full 3/16? (5mm) of additional bolt clearance. The tapered channel guides the user in, making it easier to dock. OVER-TORQUE PROTECTION Prevents system lockup if the internal hardware is accidentally over-torqued. Vehicle Applications: Minivan, WAV QLK-150 MEETS OR EXCEEDS THE FOLLOWING STANDARDS AND REGULATIONS: Fully ADA Compliant FMVSS CMVSS SAE J2249 CSA Z604 AS2942 ISO 10542-1 Meets the requirements of WC18 is compatible with WC19 wheelchairs. Crash tested at 30mph/20g in forward, rearward and sideways facing directions *Independent testing documentation available upon request. Always demand up-to-date crash testing from a certified facility. WARRANTY 3 years* limited warranty coverage.
