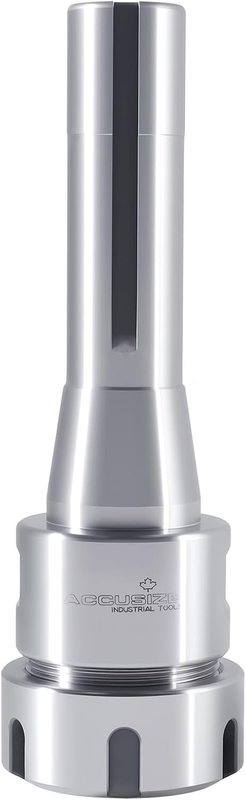

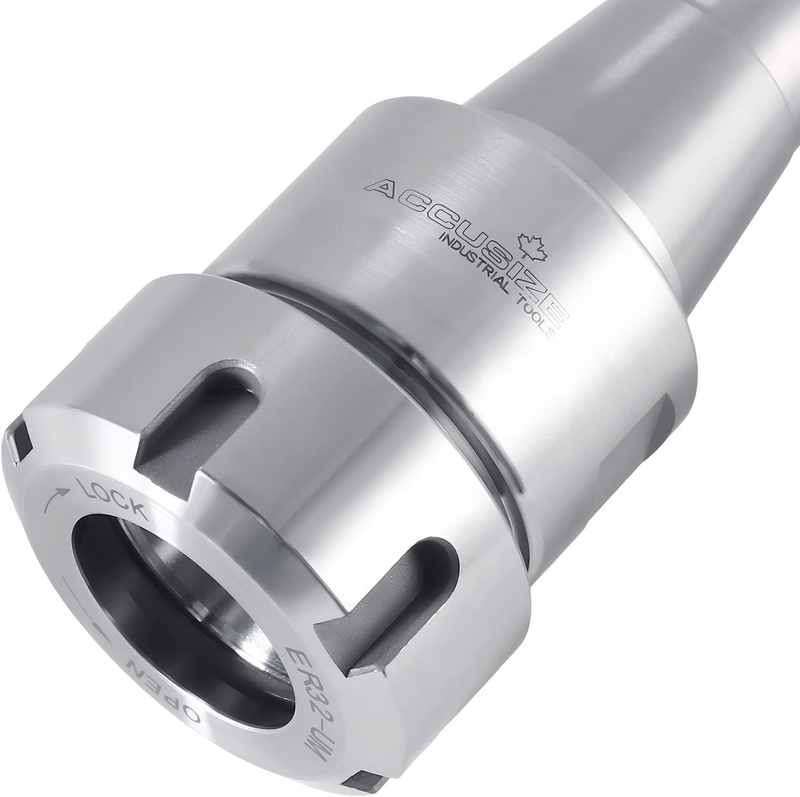

Store New Arrivals Add to Favorite View Feedback Contact R8 Shank Er32 Collet Chuck, Max RPM: 8000 RPM, 7/16''-20 Drawbar End, Max TIR 0 Description Item model number 0223-0232 Style R8-ER32 Capacity 0.79 Inches Power Source Hand Powered Cutting Diameter 0.79 Inches Thread Size 7/16''-20 UNC Batteries Included? No Measurement System Inch Item Shape R8-ER32 Batteries Required? No Product Dimensions 2.76 x 6.69 x 2.76 inches Material Alloy Steel Is Discontinued By Manufacturer No Included Components ER32 Collet Nut Item Weight 0.85 Kilograms Part Number 0223-0232 Item Diameter 0.79 Inches Compatible Devices Milling Machine Shape R8-ER32 Size ER32 (0223-0232) Made of high grade tool steel, Max RPM: 8000rpm. R8 Shank for ER32 Collets. Drawbar End: 7/16"-20 Hardened and precision ground. Max TIR 0.0002" O.D to I.D This is an ultra-precision workholding tool. When doing the inspection to ensure that each part is wiped especially clean, and the installation must be in place, otherwise it has a great impact on the accuracy When testing, whether the user's machine tool spindle has errors on the accuracy also has a great impact. So you need to ensure that the accuracy of the spindle of the user's test machine must be high. In addition, please make sure that the accuracy of the ER collet must be high, many ER collets are marked as 0.0005", many of them cannot reach it. If the accuracy of the collet in the hands of the customer is low, the accuracy of our toolholder is no longer high enough to detect the accuracy. R8 Shank for Manual Milling: Perfectly fits machine spindles with R8 taper, enhancing milling precision and stability. ER32 Collet Compatibility: Holds tool diameters from 0.08" to 0.787", offering versatility for various machining tasks. High-Grade Tool Steel Construction: Ensures durability and resistance to wear, extending the chuck's lifespan. Ultra-Precise T.I.R. Rating: Maximum T.I.R. of 0.0002" O.D to I.D for unparalleled accuracy in tool alignment and surface finish. High-Speed Capability: Designed for use up to 8000 RPM, suitable for both high-speed and precision milling operations. Product description Max TIR .0002" OD to ID R8 Shank ER32 Collet Holder Made of high-grade tool steel. Hardened and precision ground. Max RPM: 8,000 RPM. No wrench included High-Grade Tool Steel 42CrMo Made of high-grade tool steel, 42CrMo "Off-Centric" Design Feature of ER Collet Nut The Eccentric Ring complies with ISO 15488:2003(E) and secures ER collets. Thread Size of R8 Drawbar 7/16"-20 1 Overview 2 High-Grade Tool Steel 3 Eccentric Ring 4 Drawbar Thread: 7/16"-20 Features Accusize 0223-0232 R8 Shank ER32 Collet Holder For ER32 collets Made of high-grade tool steel. Hardened and precision ground. Max TIR 0.0002" O.D to I.D. Max RPM: 8,000 RPM. Diagram Specifications Gage Length (L): 2.48" Collet Nut Diameter (D): 1.97" Drawbar End(d1) Thread: 7/16"-20 Collet Capacity: 0.08"-0.787" Accuracy Inspection Cautions Clean All Parts: Dirt or improper installation affects precision. Check Spindle: Ensure your machine?s spindle is highly accurate. Use Quality Collets: Many marked 0.0005" don?t meet the spec. Overall Accuracy Depends: Low collet accuracy limits test results. Attention: Eccentric Ring of the ER Collet Nut Collet Nut's Eccentric Ring The Eccentric Ring is designed per the requirements listed in ISO 15488:2003(E). It is to hold ER collets in place. Assembly Tilt and insert the collet partway into the nut. Engage the ring into the collet's groove and press until fully seated. Assembled Tighten the nut lightly with the collet holder. (Warning: never tighten the nut without a cutter in it as it will break) Disassembly Take out the nut from the holder. Press the end of the ER collet until it disengages from its position. Push the collet out of the nut. Auxiliary Tools and Replacement Parts Accusize 0223-0880 Precision ER32 Collet Set, inch 18pcs/set 3/32"-25/32" Strong storage case Accusize 3350-0585 Precision ER32 Collet Set, mm 18pcs/set 3-20mm by 1mm Strong storage case ER32 Collet Nut, Thread Tolerance Class: 4H ER32 collet cap for CNC tool holder. Hardened alloy steel HRC 50-52, G2.5-20 000 RPM, TIR ? 0.0003 in. Wrench for ER32 Collet Nut Compare Accusize ER32 Collet Chucks Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Price $59.34$59.34 ? $59.34$59.34 $59.34$59.34 $42.00$42.00 $44.00$44.00 $56.76$56.76 SKU 0223-0232 0223-0245 0223-0235 0223-0236 0223-0212 0223-0214 0223-0216 Shank Type R8 5C Morse Taper 2 Morse Taper 3 1" Dia., 1.96" Shank Length 1" Dia., 2.56" Shank Length 1-1/4" Dia., 6.2" Shank Length TIR 0.0002" O.D to I.D. 0.0002" 0.0002" O.D to I.D. 0.0002" O.D to I.D. .0002" or better .0002" or better .0002" or better Collet Nut Style Slotted Slotted Slotted Slotted Slotted Slotted Slotted Come with Wrench ? ? ? ? ? ? ? Consider Accusize ER32 Collet Holders for CNC Machines CAT40 to ER32 Premium Floating Tap Collet Holder For light-duty tapping tasks. TIR: 0.0004" All critical surfaces are precision-ground. Made from alloy steel, hardened to HRC 54-56. CAT40 to ER32, 2.76in, Collet Holder All ground body. Made from alloy steel hardened to HRC 52-56. Taper accurately ground exceeding AT3 standard. Balanced to 20,000 RPM at G2.5. TIR: 0.00012" CAT40 to ER32, 4in, Collet Holder All ground body. Made from alloy steel hardened to HRC 52-56. Taper accurately ground exceeding AT3 standard. Balanced to 20,000 RPM at G2.5. TIR: 0.00012" ISO40 to ER32 Collet Holder Thread 5/8'' to 11, 100 mm Long, 0536-0003 TIR: 0.00012" CAT50 to ER32 4" Proj. Length CNC ER Collet Holder Constructed of alloy steel, hardened to HRC 52-56 Through-spindle coolant capability. Collet seat taper TIR ? 0.0002" CAT50 to ER32 6" Projection Length Collet Holder Constructed of alloy steel, hardened to HRC 52-56 Through-spindle coolant capability. Collet seat taper TIR ? 0.0002" Accusize provides various ER CNC Tool Holders for CNC machines with spindles, including CAT40, CAT50, ISO40, BT40, etc. ABOUT US We offer the best prices around on high quality products. Our E-store includes media such as books, movies, music and games while offering electronics, toys, sporting apparel, clothing, tools, general home, garden items and more. SHIPPING We are always working hard to ensure your package arrives as soon as possible. Please understand that some factors like weather, high postal traffic, and the performance of shipping companies are outside of our control. RETURNS We offer a 30-Day Return Policy on items which you are not completely satisfied with. You have the option for a full-refund or an exchange of the item. PAYMENT We accept PayPal. CONTACT US This page content is yet to come Please ad us to your favorite seller and visit again later Thank You CUSTOMER SATISFACTION We try our very best to make sure every customer is completely satisfied. If there's a problem, message us! We're happy to help.
